Description

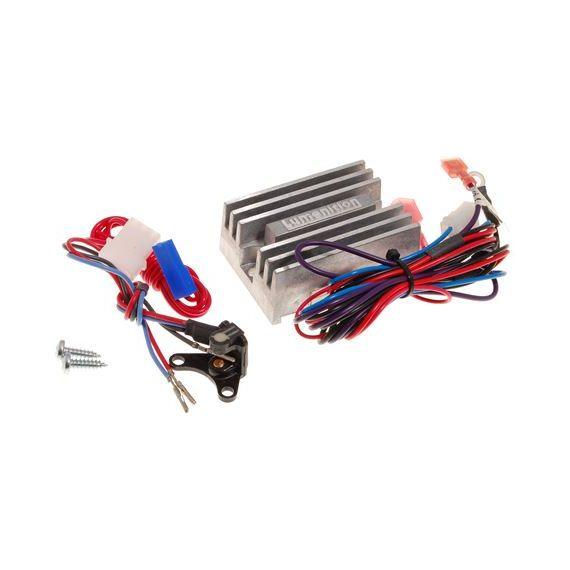

Lumenition Pma 60 Module

Lumenition Module and Optical Eye Pma50, this module must be purchased in combination with a car-specific FK... mounting kit.

You can get the set Find HERE ;

The Lumenition Optronic Ignition systems are well known as being among the finest after market electronic ignition systems available. The Lumenition Optronic Ignition is an electronic ignition conversion principally for cars fitted with mechanical distributors using contact set and condenser. There are only three components, very compact and simple to fit. First the optical switch, this contains a light emitting diode (LED) which sits on the switch bracket opposite a matching silicon photo transistor which receives or "sees" the infrared beam. Secondly, the interrupter called a chopper which is fitted over the cam, rotates interrupting the beam of light causing a pulse. It has one bade for each cylinder of the engine. Thirdly a power module receives this pulse via its internal electronic device which switches the ignition coil on hand off. The coil produces a high tension spark when switched off and is recharged when switched on. The installation can be carried out in most cases in less than an hour, a little longer with distributors that have the advance mechanism over the top of the original contact set. The advantage of the Lumenition Optronic system is that it contains no wearing parts, requires no adjustment or maintenance during service and once ignition timing is set it will remain permanently in tune. The engine will run better, more economical through improved efficiency, last longer and start better. Lumenition Optronic Ignition is suitable for vehicles with or without ballast resistor systems and/or voltage triggered tachometers. For positive and negative earthed cars.
